You pop open the electrical panel in your older home to reset a breaker and notice a name you’ve never paid much attention to: Federal Pacific. Or maybe it says Zinsco.
A quick Google search later, and you’re reading about faulty breakers, overheating, and electrical fires and wondering how worried you actually need to be.
So, does finding one mean your home is unsafe? It isn’t a reason to panic, but it is worth taking seriously. Here’s what you should know about Federal Pacific and Zinsco panels, the problems associated with them, and when replacement may be a wise choice.
What Are Federal Pacific Electric (FPE) and Zinsco Electrical Panels?
Federal Pacific and Zinsco were once common names for residential electrical panels, especially in homes built or updated between the 1950s and the 1980s. If your home still has one, the panel may have been quietly doing its job without fuss for years.
The concern with these, though, is less about age and more about problems related to the way the components in them were designed and how they perform.
Federal Pacific Electric (FPE) Panels
Federal Pacific Electric panels are commonly associated with the Stab-Lok line of circuit breakers.
These breakers were widely used in homes during the mid-20th century and became the subject of testing and a Consumer Product Safety Commission (CPSC) investigation about their potential inability to trip properly under certain overload conditions.
Zinsco Panels
Zinsco panels were also installed in many homes during the mid-20th century.
The concerns surrounding these panels center largely on the connection between the breakers and the panel’s bus bars. More specifically, the overheating and deterioration of these components can prevent proper breaker function.
Why Are Federal Pacific Panels Considered a Safety Concern?
A circuit breaker is supposed to trip when a circuit becomes overloaded, cutting the power before the wiring gets too hot. The problem with Federal Pacific Stab-Lok breakers is that some don’t always do that when they’re supposed to.
This concern goes back decades. In the early 1980s, the U.S. Consumer Product Safety Commission investigated FPE breakers and found that some failed UL calibration requirements under certain conditions.
We won’t get too far into the weeds with that, but it basically means that the breakers didn’t always trip as expected when subjected to certain levels of excess electrical current.
Though the agency investigated the breakers, no formal recall was made. The agency closed its investigation in 1983 without reaching a conclusion about the risk to consumers, citing insufficient data.
Now, that doesn’t mean that the breakers are good to go. There’s still a trend: Some of these breakers are known to fail to trip. When that happens, too much current can continue flowing through the circuit, causing wiring to overheat and creating a potential fire hazard.
What Problems Are Associated With Zinsco Panels?
Zinsco panels are associated with overheating, too, but as a result of a different problem.
Their breakers connect to metal bus bars — the “highways” that conduct and distribute electrical energy into circuits — and those connection points can deteriorate and overheat. In some cases, the breaker can become damaged or actually fuse to the bus bar.
That creates a particularly problematic situation: A damaged breaker might appear to be working normally but fail to interrupt the circuit when there’s an overload or short circuit.
That can mean that power keeps flowing even when a breaker looks like it has tripped, which increases the risk of overheating, electrical damage, and fire.
How Can I Tell If My Home Has an FPE or Zinsco Panel?
The easiest way to tell whether you have a Federal Pacific or Zinsco panel is to look inside the panel door. Federal Pacific panels may be marked as Federal Pacific Electric or FPE. The breakers often carry the Stab-Lok name.
Zinsco panels may say Zinsco or the rebranded name of Sylvania or GTE-Sylvania. You may also see narrow breakers with brightly colored handles in a Zinsco panel.
Old labels can be tough to read, though, and electrical panels can be replaced or modified over the years. If you’re struggling to make out what you have, have one of our electricians take a look.

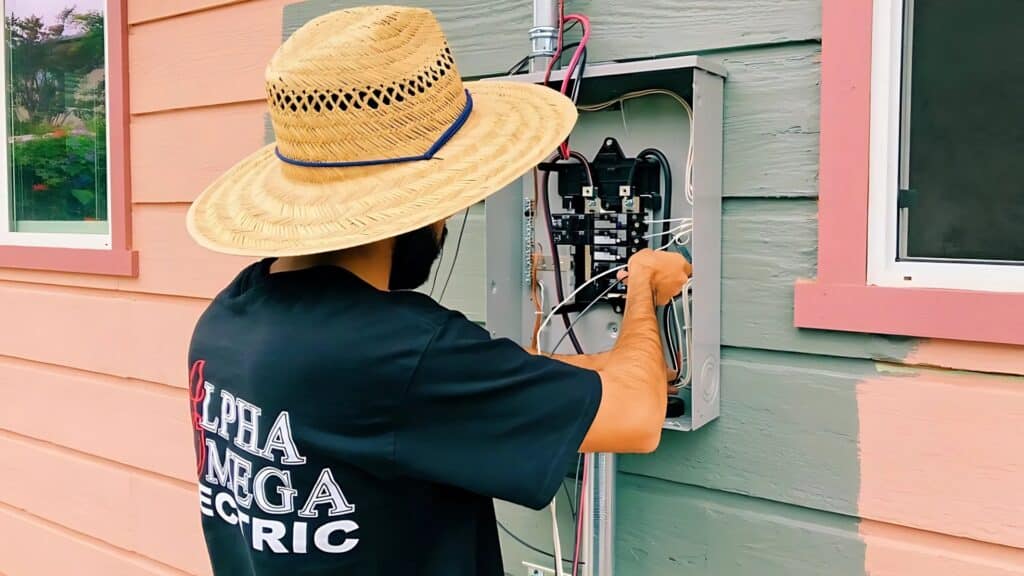

Does an Older FPE or Zinsco Panel Need to Be Replaced?
Finding an FPE or Zinsco panel doesn’t mean a fire is imminent. The bigger concern is that you have an older panel with known performance problems, and there’s no easy way to know if a breaker will work like it’s supposed to when you really need it to.
For that reason, replacement is often the recommended route. Our electricians can inspect your panel and discuss whether replacing it makes sense.
If you notice that the panel feels unusually warm or you smell a burning odor nearby, it needs immediate attention. The same goes for any buzzing, crackling, or scorch marks. If something like that happens, give us a call.
How Much Does Electrical Panel Replacement Cost?
Electrical panel upgrades in Santa Cruz cost about $1,400 on average. Most projects fall between $400 and $2,400, though costs can climb as high as $4,500 or more in some cases.
Where your project lands in that range depends on the work involved. Replacing an existing panel is one thing. If your home needs more electrical capacity or you want to upgrade your service amperage, the price will reflect that.
Once we learn more about your project, we can give you a customized estimate based on what you have and what needs to change.
Frequently Asked Questions
Finding out you have an FPE or Zinsco panel can raise a few questions beyond whether you need to replace it. Here are answers to a few of the questions we get most often in these situations.
Is it safe to keep an FPE or Zinsco panel if I haven’t had any problems?
Not necessarily.
An FPE or Zinsco panel can appear to work normally for years, but that doesn’t tell you whether its breakers will work right during an overload or short circuit. Given the known problems with these panels, we recommend having one of our licensed electricians assess the panel.
Can I sell a house with a Federal Pacific or Zinsco panel?
An FPE or Zinsco panel doesn’t automatically prevent you from selling your home. It might, however, be flagged during the buyer’s inspection, which can lead to questions about replacement or become part of the negotiations.
Should I replace an FPE or Zinsco panel before buying a home?
If you’re buying a home with an FPE or Zinsco panel, you should be prepared to replace it. Ask an electrician to take a look before closing and give you an estimate. That way, the cost won’t come as a surprise after you get the keys.
Can you replace the breakers instead of replacing an FPE or Zinsco panel?
Replacing individual breakers might not fix the problems associated with the panel itself. Zinsco panels, for instance, can develop damage where the breakers connect to the bus bar. If you have either type of panel, have it evaluated before deciding that a new breaker is all you need.
Will homeowners’ insurance cover a house with a Federal Pacific or Zinsco panel?
Insurance requirements vary by company. Some insurers may require an electrical inspection or panel replacement before providing coverage for a home with older electrical equipment. Your insurance company can tell you what applies to your policy.
Were Federal Pacific and Zinsco panels recalled?
No. Neither FPE Stab-Lok nor Zinsco panels were formally recalled. The CPSC investigated FPE breakers in the early 1980s but closed the investigation without making a determination about their safety. Zinsco panels were never recalled either, despite the problems that have since been documented with them.
How long does electrical panel replacement take?
A straightforward panel replacement can often be completed in a day. It might take longer if the job includes a service upgrade or requires additional work on your home’s electrical system, though.
Don’t Leave an Old Electrical Panel to Chance
Your electrical panel is easy to forget about when everything in the house seems to be working. But if you’ve found an FPE or Zinsco panel, it’s worth knowing what you’re working with.
Our electricians can inspect your existing panel and help you decide what comes next. If replacement is the right move, we can take care of that, too. Contact Alpha Omega Electric today to schedule electrical panel service.
